质粒名称: | SpdCas9 VPR |
---|---|
出品公司: | Addgene |
目录编号: | 188509 |
存储实验室: | Isaac Hilton |
载体骨架基本信息 |
|
载体名称: | LentiCRISPR v2 |
完整质粒大小: | 14489 bp |
载体类型: | 哺乳细胞表达, Lentiviral, CRISPR |
筛选标记: | Puromycin |
载体抗性: | 氨苄霉素 |
生长温度: | 37 ℃ |
宿主菌: | NEB Stable |
拷贝数: | 高拷贝 |
插入基因信息 |
|
插入基因名称: | dCas9 |
物种来源: | Streptococcus pyogenes |
基因突变: | D10A/H840A |
启动子: | EF1a |
克隆方法: | Gibson Cloning |
文献引用方法 |
|
材料和方法部分: |
SpdCas9 VPR was a gift from Isaac Hilton (Addgene plasmid # 188509 ; http://n2t.net/addgene:188509 ; RRID:Addgene_188509)
|
参考文献部分: | Quantification of Genome Editing and Transcriptional Control Capabilities Reveals Hierarchies among Diverse CRISPR/Cas Systems in Human Cells. Escobar M, Li J, Patel A, Liu S, Xu Q, Hilton IB. ACS Synth Biol. 2022 Oct 21;11(10):3239-3250. doi: 10.1021/acssynbio.2c00156. Epub 2022 Sep 26. 10.1021/acssynbio.2c00156 PubMed 36162812 |
买家导航
载体基本信息

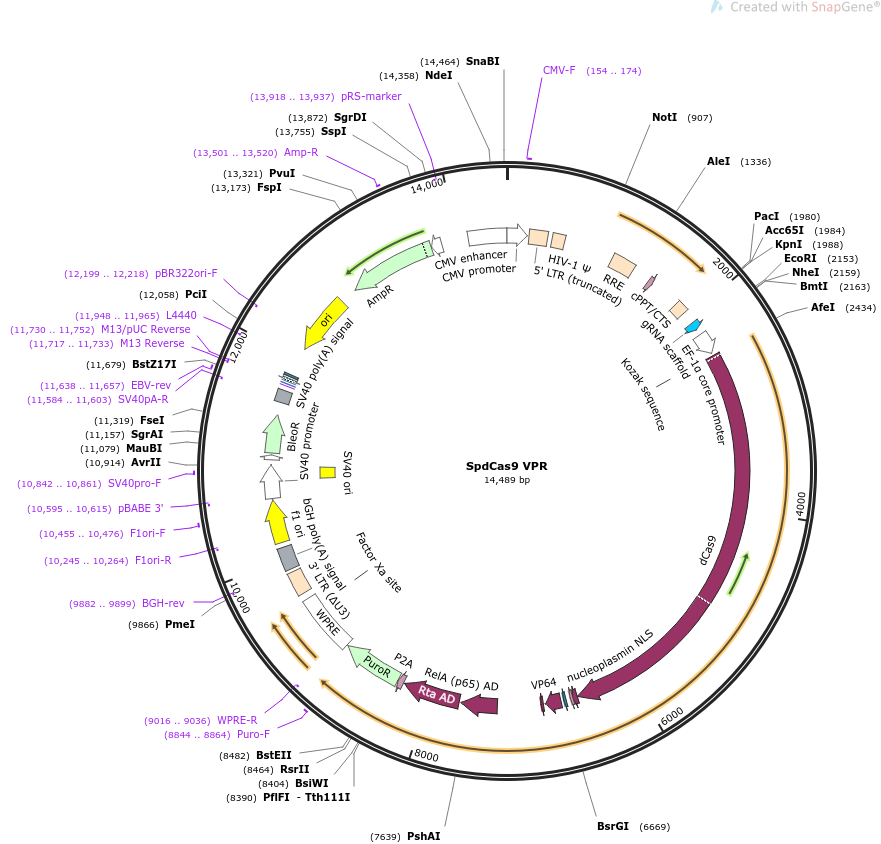

载体图谱质粒图谱和多克隆位点信息
载体简介
载体序列
LOCUS Exported 14489 bp ds-DNA circular SYN 28-SEP-2022 DEFINITION Expresses FLAG tagged SpdCas9 VPR. ACCESSION . VERSION . KEYWORDS SpdCas9 VPR SOURCE synthetic DNA construct ORGANISM synthetic DNA construct REFERENCE 1 (bases 1 to 14489) AUTHORS Escobar M, Li J, Patel A, Liu S, Xu Q, Hilton IB TITLE Quantification of Genome Editing and Transcriptional Control Capabilities Reveals Hierarchies among Diverse CRISPR/Cas Systems in Human Cells JOURNAL ACS Synth. Biol. 2022 REFERENCE 2 (bases 1 to 14489) AUTHORS . TITLE Direct Submission JOURNAL Exported Sep 28, 2022 from SnapGene Server 1.1.58 http://www.snapgene.com FEATURES Location/Qualifiers source 1..14489 /organism="synthetic DNA construct" /mol_type="other DNA" promoter 1..199 /label=CMV promoter /note="human cytomegalovirus (CMV) immediate early promoter" primer_bind 154..174 /label=CMV-F /note="Human CMV immediate early promoter, forward primer" LTR 217..397 /label=5' LTR (truncated) /note="truncated 5' long terminal repeat (LTR) from HIV-1" misc_feature 444..569 /label=HIV-1 Psi /note="packaging signal of human immunodeficiency virus type 1" misc_feature 1062..1295 /label=RRE /note="The Rev response element (RRE) of HIV-1 allows for Rev-dependent mRNA export from the nucleus to the cytoplasm." CDS 1480..1524 /codon_start=1 /product="antigenic peptide corresponding to amino acids 655 to 669 of the HIV envelope protein gp41 (Lutje Hulsik et al., 2013)" /label=gp41 peptide /note="recognized by the 2H10 single-chain llama nanobody" /translation="KNEQELLELDKWASL" misc_feature 1822..1939 /label=cPPT/CTS /note="central polypurine tract and central termination sequence of HIV-1" misc_RNA 2071..2146 /label=gRNA scaffold /note="guide RNA scaffold for the Streptococcus pyogenes CRISPR/Cas9 system" promoter 2208..2419 /label=EF-1-alpha core promoter /note="core promoter for human elongation factor EF-1-alpha" regulatory 2438..2447 /regulatory_class="other" /note="vertebrate consensus sequence for strong initiation of translation (Kozak, 1987)" CDS 2444..6547 /codon_start=1 /product="catalytically dead mutant of the Cas9 endonuclease from the Streptococcus pyogenes Type II CRISPR/Cas system" /label=dCas9 /note="RNA-guided DNA-binding protein that lacks endonuclease activity due to the D10A mutation in the RuvC catalytic domain and the H840A mutation in the HNH catalytic domain" /translation="MDKKYSIGLAIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKK NLIGALLFDSGETAEATRLKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEES FLVEEDKKHERHPIFGNIVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIK FRGHFLIEGDLNPDNSDVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRL ENLIAQLPGEKKNGLFGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQ IGDQYADLFLAAKNLSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVR QQLPEKYKEIFFDQSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLL RKQRTFDNGSIPHQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARG NSRFAWMTRKSEETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEY FTVYNELTKVKYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFD SVEISGVEDRFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEER LKTYAHLFDDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFM QLIHDDSLTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGR HKPENIVIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLY LYYLQNGRDMYVDQELDINRLSDYDVDAIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVP SEEVVKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKH VAQILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYL NAVVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKT EITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTEVQTGGFSK ESILPKRNSDKLIARKKDWDPKKYGGFDSPTVAYSVLVVAKVEKGKSKKLKSVKELLGI TIMERSSFEKNPIDFLEAKGYKEVKKDLIIKLPKYSLFELENGRKRMLASAGELQKGNE LALPSKYVNFLYLASHYEKLKGSPEDNEQKQLFVEQHKHYLDEIIEQISEFSKRVILAD ANLDKVLSAYNKHRDKPIREQAENIIHLFTLTNLGAPAAFKYFDTTIDRKRYTSTKEVL DATLIHQSITGLYETRIDLSQLGGD" CDS 6548..6595 /codon_start=1 /product="bipartite nuclear localization signal from nucleoplasmin" /label=nucleoplasmin NLS /translation="KRPAATKKAGQAKKKK" CDS 6596..6619 /codon_start=1 /product="FLAG(R) epitope tag, followed by an enterokinase cleavage site" /label=FLAG /translation="DYKDDDDK" protein_bind 6662..6686 /gene="mutant version of attB" /label=attB1 /bound_moiety="BP Clonase(TM)" /note="recombination site for the Gateway(R) BP reaction" CDS 6716..6865 /codon_start=1 /product="tetrameric repeat of the minimal activation domain of herpes simplex virus VP16 (Beerli et al., 1998)" /label=VP64 /translation="DALDDFDLDMLGSDALDDFDLDMLGSDALDDFDLDMLGSDALDDF DLDML" CDS 6890..6910 /codon_start=1 /product="nuclear localization signal of SV40 (simian virus 40) large T antigen" /label=SV40 NLS /translation="PKKKRKV" CDS 7340..7696 /codon_start=1 /product="transcriptional activation domain of human RelA, also known as p65 (O'Shea and Perkins, 2008)" /label=RelA (p65) AD /translation="PTQAGEGTLSEALLQLQFDDEDLGALLGNSTDPAVFTDLASVDNS EFQQLLNQGIPVAPHTTEPMLMEYPEAITRLVTGAQRPPDPAPAPLGAPGLPNGLLSGD EDFSSIADMDFSALL" CDS 7715..8284 /codon_start=1 /product="transcriptional activation domain from the human herpesvirus 4 (Epstein-Barr virus) replication and transcription activator Rta/BRLF1 (Hardwick et al., 1992; Chavez et al., 2015)" /label=Rta AD /translation="RDSREGMFLPKPEAGSAISDVFEGREVCQPKRIRPFHPPGSPWAN RPLPASLAPTPTGPVHEPVGSLTPAPVPQPLDPAPAVTPEASHLLEDPDEETSQAVKAL REMADTVIPQKEEAAICGQMDLSHPPPRGHLDELTTTLESMTEDLNLDSPLTPELNEIL DTFLNDECLLHAMHISTGLSIFDTSLF" CDS 8294..8350 /codon_start=1 /product="2A peptide from porcine teschovirus-1 polyprotein" /label=P2A /note="Eukaryotic ribosomes fail to insert a peptide bond between the Gly and Pro residues, yielding separate polypeptides." /translation="ATNFSLLKQAGDVEENPGP" CDS 8351..8947 /codon_start=1 /gene="pac from Streptomyces alboniger" /product="puromycin N-acetyltransferase" /label=PuroR /note="confers resistance to puromycin" /translation="TEYKPTVRLATRDDVPRAVRTLAAAFADYPATRHTVDPDRHIERV TELQELFLTRVGLDIGKVWVADDGAAVAVWTTPESVEAGAVFAEIGPRMAELSGSRLAA QQQMEGLLAPHRPKEPAWFLATVGVSPDHQGKGLGSAVVLPGVEAAERAGVPAFLETSA PRNLPFYERLGFTVTADVEVPEGPRTWCMTRKPGA" primer_bind 8844..8864 /label=Puro-F /note="Puromycin resistance gene, forward primer" misc_feature 8963..9551 /label=WPRE /note="woodchuck hepatitis virus posttranscriptional regulatory element" primer_bind complement(9016..9036) /label=WPRE-R /note="WPRE, reverse primer" CDS complement(9434..9445) /codon_start=1 /product="Factor Xa recognition and cleavage site" /label=Factor Xa site /translation="IEGR" LTR 9623..9856 /label=3' LTR (Delta-U3) /note="self-inactivating 3' long terminal repeat (LTR) from HIV-1" primer_bind complement(9882..9899) /label=BGH-rev /note="Bovine growth hormone terminator, reverse primer. Also called BGH reverse" polyA_signal 9888..10112 /label=bGH poly(A) signal /note="bovine growth hormone polyadenylation signal" rep_origin 10158..10586 /direction=RIGHT /label=f1 ori /note="f1 bacteriophage origin of replication; arrow indicates direction of (+) strand synthesis" primer_bind complement(10245..10264) /label=F1ori-R /note="F1 origin, reverse primer" primer_bind 10455..10476 /label=F1ori-F /note="F1 origin, forward primer" primer_bind complement(10595..10615) /label=pBABE 3' /note="SV40 enhancer, reverse primer for pBABE vectors" promoter 10600..10929 /label=SV40 promoter /note="SV40 enhancer and early promoter" rep_origin 10780..10915 /label=SV40 ori /note="SV40 origin of replication" primer_bind 10842..10861 /label=SV40pro-F /note="SV40 promoter/origin, forward primer" promoter 10977..11024 /label=EM7 promoter /note="synthetic bacterial promoter " CDS 11043..11417 /codon_start=1 /gene="Sh ble from Streptoalloteichus hindustanus" /product="antibiotic-binding protein" /label=BleoR /note="confers resistance to bleomycin, phleomycin, and Zeocin(TM)" /translation="MAKLTSAVPVLTARDVAGAVEFWTDRLGFSRDFVEDDFAGVVRDD VTLFISAVQDQVVPDNTLAWVWVRGLDELYAEWSEVVSTNFRDASGPAMTEIGEQPWGR EFALRDPAGNCVHFVAEEQD" polyA_signal 11547..11668 /label=SV40 poly(A) signal /note="SV40 polyadenylation signal" primer_bind complement(11584..11603) /label=SV40pA-R /note="SV40 polyA, reverse primer" primer_bind 11638..11657 /label=EBV-rev /note="SV40 polyA terminator, reverse primer" primer_bind complement(11717..11733) /label=M13 rev /note="common sequencing primer, one of multiple similar variants" primer_bind complement(11717..11733) /label=M13 Reverse /note="In lacZ gene. Also called M13-rev" primer_bind complement(11730..11752) /label=M13/pUC Reverse /note="In lacZ gene" protein_bind 11741..11757 /label=lac operator /bound_moiety="lac repressor encoded by lacI" /note="The lac repressor binds to the lac operator to inhibit transcription in E. coli. This inhibition can be relieved by adding lactose or isopropyl-beta-D-thiogalactopyranoside (IPTG)." promoter complement(11765..11795) /label=lac promoter /note="promoter for the E. coli lac operon" protein_bind 11810..11831 /label=CAP binding site /bound_moiety="E. coli catabolite activator protein" /note="CAP binding activates transcription in the presence of cAMP." primer_bind complement(11948..11965) /label=L4440 /note="L4440 vector, forward primer" rep_origin complement(12119..12707) /direction=LEFT /label=ori /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of replication" primer_bind complement(12199..12218) /label=pBR322ori-F /note="pBR322 origin, forward primer" CDS complement(12878..13738) /codon_start=1 /gene="bla" /product="beta-lactamase" /label=AmpR /note="confers resistance to ampicillin, carbenicillin, and related antibiotics" /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS LIKHW" primer_bind 13501..13520 /label=Amp-R /note="Ampicillin resistance gene, reverse primer" promoter complement(13739..13843) /gene="bla" /label=AmpR promoter primer_bind complement(13918..13937) /label=pRS-marker /note="pRS vectors, use to sequence yeast selectable marker" enhancer 14109..14488 /label=CMV enhancer /note="human cytomegalovirus immediate early enhancer" ORIGIN 1 tgatgcggtt ttggcagtac atcaatgggc gtggatagcg gtttgactca cggggatttc 61 caagtctcca ccccattgac gtcaatggga gtttgttttg gcaccaaaat caacgggact 121 ttccaaaatg tcgtaacaac tccgccccat tgacgcaaat gggcggtagg cgtgtacggt 181 gggaggtcta tataagcagc gcgttttgcc tgtactgggt ctctctggtt agaccagatc 241 tgagcctggg agctctctgg ctaactaggg aacccactgc ttaagcctca ataaagcttg 301 ccttgagtgc ttcaagtagt gtgtgcccgt ctgttgtgtg actctggtaa ctagagatcc 361 ctcagaccct tttagtcagt gtggaaaatc tctagcagtg gcgcccgaac agggacttga 421 aagcgaaagg gaaaccagag gagctctctc gacgcaggac tcggcttgct gaagcgcgca 481 cggcaagagg cgaggggcgg cgactggtga gtacgccaaa aattttgact agcggaggct 541 agaaggagag agatgggtgc gagagcgtca gtattaagcg ggggagaatt agatcgcgat 601 gggaaaaaat tcggttaagg ccagggggaa agaaaaaata taaattaaaa catatagtat 661 gggcaagcag ggagctagaa cgattcgcag ttaatcctgg cctgttagaa acatcagaag 721 gctgtagaca aatactggga cagctacaac catcccttca gacaggatca gaagaactta 781 gatcattata taatacagta gcaaccctct attgtgtgca tcaaaggata gagataaaag 841 acaccaagga agctttagac aagatagagg aagagcaaaa caaaagtaag accaccgcac 901 agcaagcggc cgctgatctt cagacctgga ggaggagata tgagggacaa ttggagaagt 961 gaattatata aatataaagt agtaaaaatt gaaccattag gagtagcacc caccaaggca 1021 aagagaagag tggtgcagag agaaaaaaga gcagtgggaa taggagcttt gttccttggg 1081 ttcttgggag cagcaggaag cactatgggc gcagcgtcaa tgacgctgac ggtacaggcc 1141 agacaattat tgtctggtat agtgcagcag cagaacaatt tgctgagggc tattgaggcg 1201 caacagcatc tgttgcaact cacagtctgg ggcatcaagc agctccaggc aagaatcctg 1261 gctgtggaaa gatacctaaa ggatcaacag ctcctgggga tttggggttg ctctggaaaa 1321 ctcatttgca ccactgctgt gccttggaat gctagttgga gtaataaatc tctggaacag 1381 atttggaatc acacgacctg gatggagtgg gacagagaaa ttaacaatta cacaagctta 1441 atacactcct taattgaaga atcgcaaaac cagcaagaaa agaatgaaca agaattattg 1501 gaattagata aatgggcaag tttgtggaat tggtttaaca taacaaattg gctgtggtat 1561 ataaaattat tcataatgat agtaggaggc ttggtaggtt taagaatagt ttttgctgta 1621 ctttctatag tgaatagagt taggcaggga tattcaccat tatcgtttca gacccacctc 1681 ccaaccccga ggggacccga caggcccgaa ggaatagaag aagaaggtgg agagagagac 1741 agagacagat ccattcgatt agtgaacgga tcggcactgc gtgcgccaat tctgcagaca 1801 aatggcagta ttcatccaca attttaaaag aaaagggggg attggggggt acagtgcagg 1861 ggaaagaata gtagacataa tagcaacaga catacaaact aaagaattac aaaaacaaat 1921 tacaaaaatt caaaattttc gggtttatta cagggacagc agagatccag tttggttaat 1981 taaggtaccg atatcactag tgttccatta actgcgctaa aaataatttt taaatctttt 2041 ttagcttctt gctctttttt gtacgtctct gttttagagc tagaaatagc aagttaaaat 2101 aaggctagtc cgttatcaac ttgaaaaagt ggcaccgagt cggtgctttt ttgaattcgc 2161 tagctaggtc ttgaaaggag tgggaattgg ctccggtgcc cgtcagtggg cagagcgcac 2221 atcgcccaca gtccccgaga agttgggggg aggggtcggc aattgatccg gtgcctagag 2281 aaggtggcgc ggggtaaact gggaaagtga tgtcgtgtac tggctccgcc tttttcccga 2341 gggtggggga gaaccgtata taagtgcagt agtcgccgtg aacgttcttt ttcgcaacgg 2401 gtttgccgcc agaacacagg accggttcta gagcgctgcc accatggaca agaagtacag 2461 catcggcctg gccatcggca ccaactctgt gggctgggcc gtgatcaccg acgagtacaa 2521 ggtgcccagc aagaaattca aggtgctggg caacaccgac cggcacagca tcaagaagaa 2581 cctgatcgga gccctgctgt tcgacagcgg cgaaacagcc gaggccaccc ggctgaagag 2641 aaccgccaga agaagataca ccagacggaa gaaccggatc tgctatctgc aagagatctt 2701 cagcaacgag atggccaagg tggacgacag cttcttccac agactggaag agtccttcct 2761 ggtggaagag gataagaagc acgagcggca ccccatcttc ggcaacatcg tggacgaggt 2821 ggcctaccac gagaagtacc ccaccatcta ccacctgaga aagaaactgg tggacagcac 2881 cgacaaggcc gacctgcggc tgatctatct ggccctggcc cacatgatca agttccgggg 2941 ccacttcctg atcgagggcg acctgaaccc cgacaacagc gacgtggaca agctgttcat 3001 ccagctggtg cagacctaca accagctgtt cgaggaaaac cccatcaacg ccagcggcgt 3061 ggacgccaag gccatcctgt ctgccagact gagcaagagc agacggctgg aaaatctgat 3121 cgcccagctg cccggcgaga agaagaatgg cctgttcgga aacctgattg ccctgagcct 3181 gggcctgacc cccaacttca agagcaactt cgacctggcc gaggatgcca aactgcagct 3241 gagcaaggac acctacgacg acgacctgga caacctgctg gcccagatcg gcgaccagta 3301 cgccgacctg tttctggccg ccaagaacct gtccgacgcc atcctgctga gcgacatcct 3361 gagagtgaac accgagatca ccaaggcccc cctgagcgcc tctatgatca agagatacga 3421 cgagcaccac caggacctga ccctgctgaa agctctcgtg cggcagcagc tgcctgagaa 3481 gtacaaagag attttcttcg accagagcaa gaacggctac gccggctaca ttgacggcgg 3541 agccagccag gaagagttct acaagttcat caagcccatc ctggaaaaga tggacggcac 3601 cgaggaactg ctcgtgaagc tgaacagaga ggacctgctg cggaagcagc ggaccttcga 3661 caacggcagc atcccccacc agatccacct gggagagctg cacgccattc tgcggcggca 3721 ggaagatttt tacccattcc tgaaggacaa ccgggaaaag atcgagaaga tcctgacctt 3781 ccgcatcccc tactacgtgg gccctctggc caggggaaac agcagattcg cctggatgac 3841 cagaaagagc gaggaaacca tcaccccctg gaacttcgag gaagtggtgg acaagggcgc 3901 ttccgcccag agcttcatcg agcggatgac caacttcgat aagaacctgc ccaacgagaa 3961 ggtgctgccc aagcacagcc tgctgtacga gtacttcacc gtgtataacg agctgaccaa 4021 agtgaaatac gtgaccgagg gaatgagaaa gcccgccttc ctgagcggcg agcagaaaaa 4081 ggccatcgtg gacctgctgt tcaagaccaa ccggaaagtg accgtgaagc agctgaaaga 4141 ggactacttc aagaaaatcg agtgcttcga ctccgtggaa atctccggcg tggaagatcg 4201 gttcaacgcc tccctgggca cataccacga tctgctgaaa attatcaagg acaaggactt 4261 cctggacaat gaggaaaacg aggacattct ggaagatatc gtgctgaccc tgacactgtt 4321 tgaggacaga gagatgatcg aggaacggct gaaaacctat gcccacctgt tcgacgacaa 4381 agtgatgaag cagctgaagc ggcggagata caccggctgg ggcaggctga gccggaagct 4441 gatcaacggc atccgggaca agcagtccgg caagacaatc ctggatttcc tgaagtccga 4501 cggcttcgcc aacagaaact tcatgcagct gatccacgac gacagcctga cctttaaaga 4561 ggacatccag aaagcccagg tgtccggcca gggcgatagc ctgcacgagc acattgccaa 4621 tctggccggc agccccgcca ttaagaaggg catcctgcag acagtgaagg tggtggacga 4681 gctcgtgaaa gtgatgggcc ggcacaagcc cgagaacatc gtgatcgaaa tggccagaga 4741 gaaccagacc acccagaagg gacagaagaa cagccgcgag agaatgaagc ggatcgaaga 4801 gggcatcaaa gagctgggca gccagatcct gaaagaacac cccgtggaaa acacccagct 4861 gcagaacgag aagctgtacc tgtactacct gcagaatggg cgggatatgt acgtggacca 4921 ggaactggac atcaaccggc tgtccgacta cgatgtggac gccatcgtgc ctcagagctt 4981 tctgaaggac gactccatcg acaacaaggt gctgaccaga agcgacaaga accggggcaa 5041 gagcgacaac gtgccctccg aagaggtcgt gaagaagatg aagaactact ggcggcagct 5101 gctgaacgcc aagctgatta cccagagaaa gttcgacaat ctgaccaagg ccgagagagg 5161 cggcctgagc gaactggata aggccggctt catcaagaga cagctggtgg aaacccggca 5221 gatcacaaag cacgtggcac agatcctgga ctcccggatg aacactaagt acgacgagaa 5281 tgacaagctg atccgggaag tgaaagtgat caccctgaag tccaagctgg tgtccgattt 5341 ccggaaggat ttccagtttt acaaagtgcg cgagatcaac aactaccacc acgcccacga 5401 cgcctacctg aacgccgtcg tgggaaccgc cctgatcaaa aagtacccta agctggaaag 5461 cgagttcgtg tacggcgact acaaggtgta cgacgtgcgg aagatgatcg ccaagagcga 5521 gcaggaaatc ggcaaggcta ccgccaagta cttcttctac agcaacatca tgaacttttt 5581 caagaccgag attaccctgg ccaacggcga gatccggaag cggcctctga tcgagacaaa 5641 cggcgaaacc ggggagatcg tgtgggataa gggccgggat tttgccaccg tgcggaaagt 5701 gctgagcatg ccccaagtga atatcgtgaa aaagaccgag gtgcagacag gcggcttcag 5761 caaagagtct atcctgccca agaggaacag cgataagctg atcgccagaa agaaggactg 5821 ggaccctaag aagtacggcg gcttcgacag ccccaccgtg gcctattctg tgctggtggt 5881 ggccaaagtg gaaaagggca agtccaagaa actgaagagt gtgaaagagc tgctggggat 5941 caccatcatg gaaagaagca gcttcgagaa gaatcccatc gactttctgg aagccaaggg 6001 ctacaaagaa gtgaaaaagg acctgatcat caagctgcct aagtactccc tgttcgagct 6061 ggaaaacggc cggaagagaa tgctggcctc tgccggcgaa ctgcagaagg gaaacgaact 6121 ggccctgccc tccaaatatg tgaacttcct gtacctggcc agccactatg agaagctgaa 6181 gggctccccc gaggataatg agcagaaaca gctgtttgtg gaacagcaca agcactacct 6241 ggacgagatc atcgagcaga tcagcgagtt ctccaagaga gtgatcctgg ccgacgctaa 6301 tctggacaaa gtgctgtccg cctacaacaa gcaccgggat aagcccatca gagagcaggc 6361 cgagaatatc atccacctgt ttaccctgac caatctggga gcccctgccg ccttcaagta 6421 ctttgacacc accatcgacc ggaagaggta caccagcacc aaagaggtgc tggacgccac 6481 cctgatccac cagagcatca ccggcctgta cgagacacgg atcgacctgt ctcagctggg 6541 aggcgacaag cgacctgccg ccacaaagaa ggctggacag gctaagaaga agaaagatta 6601 caaagacgat gacgataagg gatcctcgcc agggatccgt cgacttgacg cgttgatatc 6661 aacaagtttg tacaaaaaag caggctacaa agaggccagc ggttccggac gggctgacgc 6721 attggacgat tttgatctgg atatgctggg aagtgacgcc ctcgatgatt ttgaccttga 6781 catgcttggt tcggatgccc ttgatgactt tgacctcgac atgctcggca gtgacgccct 6841 tgatgatttc gacctggaca tgctgattaa ctctagaagt tccggatctc cgaaaaagaa 6901 acgcaaagtt ggtagccagt acctgcccga caccgacgac cggcaccgga tcgaggaaaa 6961 gcggaagcgg acctacgaga cattcaagag catcatgaag aagtccccct tcagcggccc 7021 caccgaccct agacctccac ctagaagaat cgccgtgccc agcagatcca gcgccagcgt 7081 gccaaaacct gccccccagc cttacccctt caccagcagc ctgagcacca tcaactacga 7141 cgagttccct accatggtgt tccccagcgg ccagatctct caggcctctg ctctggctcc 7201 agcccctcct caggtgctgc ctcaggctcc tgctcctgca ccagctccag ccatggtgtc 7261 tgcactggct caggcaccag cacccgtgcc tgtgctggct cctggacctc cacaggctgt 7321 ggctccacca gcccctaaac ctacacaggc cggcgagggc acactgtctg aagctctgct 7381 gcagctgcag ttcgacgacg aggatctggg agccctgctg ggaaacagca ccgatcctgc 7441 cgtgttcacc gacctggcca gcgtggacaa cagcgagttc cagcagctgc tgaaccaggg 7501 catccctgtg gcccctcaca ccaccgagcc catgctgatg gaataccccg aggccatcac 7561 ccggctcgtg acaggcgctc agaggcctcc tgatccagct cctgcccctc tgggagcacc 7621 aggcctgcct aatggactgc tgtctggcga cgaggacttc agctctatcg ccgatatgga 7681 tttctcagcc ttgctgggct ctggcagcgg cagccgggat tccagggaag ggatgttttt 7741 gccgaagcct gaggccggct ccgctattag tgacgtgttt gagggccgcg aggtgtgcca 7801 gccaaaacga atccggccat ttcatcctcc aggaagtcca tgggccaacc gcccactccc 7861 cgccagcctc gcaccaacac caaccggtcc agtacatgag ccagtcgggt cactgacccc 7921 ggcaccagtc cctcagccac tggatccagc gcccgcagtg actcccgagg ccagtcacct 7981 gttggaggat cccgatgaag agacgagcca ggctgtcaaa gcccttcggg agatggccga 8041 tactgtgatt ccccagaagg aagaggctgc aatctgtggc caaatggacc tttcccatcc 8101 gcccccaagg ggccatctgg atgagctgac aaccacactt gagtccatga ccgaggatct 8161 gaacctggac tcacccctga ccccggaatt gaacgagatt ctggatacct tcctgaacga 8221 cgagtgcctc ttgcatgcca tgcatatcag cacaggactg tccatcttcg acacatctct 8281 gtttggatcc ggcgcaacaa acttctctct gctgaaacaa gccggagatg tcgaagagaa 8341 tcctggaccg accgagtaca agcccacggt gcgcctcgcc acccgcgacg acgtccccag 8401 ggccgtacgc accctcgccg ccgcgttcgc cgactacccc gccacgcgcc acaccgtcga 8461 tccggaccgc cacatcgagc gggtcaccga gctgcaagaa ctcttcctca cgcgcgtcgg 8521 gctcgacatc ggcaaggtgt gggtcgcgga cgacggcgcc gcggtggcgg tctggaccac 8581 gccggagagc gtcgaagcgg gggcggtgtt cgccgagatc ggcccgcgca tggccgagtt 8641 gagcggttcc cggctggccg cgcagcaaca gatggaaggc ctcctggcgc cgcaccggcc 8701 caaggagccc gcgtggttcc tggccaccgt cggagtctcg cccgaccacc agggcaaggg 8761 tctgggcagc gccgtcgtgc tccccggagt ggaggcggcc gagcgcgccg gggtgcccgc 8821 cttcctggag acctccgcgc cccgcaacct ccccttctac gagcggctcg gcttcaccgt 8881 caccgccgac gtcgaggtgc ccgaaggacc gcgcacctgg tgcatgaccc gcaagcccgg 8941 tgcctgaacg cgttaagtcg acaatcaacc tctggattac aaaatttgtg aaagattgac 9001 tggtattctt aactatgttg ctccttttac gctatgtgga tacgctgctt taatgccttt 9061 gtatcatgct attgcttccc gtatggcttt cattttctcc tccttgtata aatcctggtt 9121 gctgtctctt tatgaggagt tgtggcccgt tgtcaggcaa cgtggcgtgg tgtgcactgt 9181 gtttgctgac gcaaccccca ctggttgggg cattgccacc acctgtcagc tcctttccgg 9241 gactttcgct ttccccctcc ctattgccac ggcggaactc atcgccgcct gccttgcccg 9301 ctgctggaca ggggctcggc tgttgggcac tgacaattcc gtggtgttgt cggggaaatc 9361 atcgtccttt ccttggctgc tcgcctgtgt tgccacctgg attctgcgcg ggacgtcctt 9421 ctgctacgtc ccttcggccc tcaatccagc ggaccttcct tcccgcggcc tgctgccggc 9481 tctgcggcct cttccgcgtc ttcgccttcg ccctcagacg agtcggatct ccctttgggc 9541 cgcctccccg cgtcgacttt aagaccaatg acttacaagg cagctgtaga tcttagccac 9601 tttttaaaag aaaagggggg actggaaggg ctaattcact cccaacgaag acaagatctg 9661 ctttttgctt gtactgggtc tctctggtta gaccagatct gagcctggga gctctctggc 9721 taactaggga acccactgct taagcctcaa taaagcttgc cttgagtgct tcaagtagtg 9781 tgtgcccgtc tgttgtgtga ctctggtaac tagagatccc tcagaccctt ttagtcagtg 9841 tggaaaatct ctagcagggc ccgtttaaac ccgctgatca gcctcgactg tgccttctag 9901 ttgccagcca tctgttgttt gcccctcccc cgtgccttcc ttgaccctgg aaggtgccac 9961 tcccactgtc ctttcctaat aaaatgagga aattgcatcg cattgtctga gtaggtgtca 10021 ttctattctg gggggtgggg tggggcagga cagcaagggg gaggattggg aagacaatag 10081 caggcatgct ggggatgcgg tgggctctat ggcttctgag gcggaaagaa ccagctgggg 10141 ctctaggggg tatccccacg cgccctgtag cggcgcatta agcgcggcgg gtgtggtggt 10201 tacgcgcagc gtgaccgcta cacttgccag cgccctagcg cccgctcctt tcgctttctt 10261 cccttccttt ctcgccacgt tcgccggctt tccccgtcaa gctctaaatc gggggctccc 10321 tttagggttc cgatttagtg ctttacggca cctcgacccc aaaaaacttg attagggtga 10381 tggttcacgt agtgggccat cgccctgata gacggttttt cgccctttga cgttggagtc 10441 cacgttcttt aatagtggac tcttgttcca aactggaaca acactcaacc ctatctcggt 10501 ctattctttt gatttataag ggattttgcc gatttcggcc tattggttaa aaaatgagct 10561 gatttaacaa aaatttaacg cgaattaatt ctgtggaatg tgtgtcagtt agggtgtgga 10621 aagtccccag gctccccagc aggcagaagt atgcaaagca tgcatctcaa ttagtcagca 10681 accaggtgtg gaaagtcccc aggctcccca gcaggcagaa gtatgcaaag catgcatctc 10741 aattagtcag caaccatagt cccgccccta actccgccca tcccgcccct aactccgccc 10801 agttccgccc attctccgcc ccatggctga ctaatttttt ttatttatgc agaggccgag 10861 gccgcctctg cctctgagct attccagaag tagtgaggag gcttttttgg aggcctaggc 10921 ttttgcaaaa agctcccggg agcttgtata tccattttcg gatctgatca gcacgtgttg 10981 acaattaatc atcggcatag tatatcggca tagtataata cgacaaggtg aggaactaaa 11041 ccatggccaa gttgaccagt gccgttccgg tgctcaccgc gcgcgacgtc gccggagcgg 11101 tcgagttctg gaccgaccgg ctcgggttct cccgggactt cgtggaggac gacttcgccg 11161 gtgtggtccg ggacgacgtg accctgttca tcagcgcggt ccaggaccag gtggtgccgg 11221 acaacaccct ggcctgggtg tgggtgcgcg gcctggacga gctgtacgcc gagtggtcgg 11281 aggtcgtgtc cacgaacttc cgggacgcct ccgggccggc catgaccgag atcggcgagc 11341 agccgtgggg gcgggagttc gccctgcgcg acccggccgg caactgcgtg cacttcgtgg 11401 ccgaggagca ggactgacac gtgctacgag atttcgattc caccgccgcc ttctatgaaa 11461 ggttgggctt cggaatcgtt ttccgggacg ccggctggat gatcctccag cgcggggatc 11521 tcatgctgga gttcttcgcc caccccaact tgtttattgc agcttataat ggttacaaat 11581 aaagcaatag catcacaaat ttcacaaata aagcattttt ttcactgcat tctagttgtg 11641 gtttgtccaa actcatcaat gtatcttatc atgtctgtat accgtcgacc tctagctaga 11701 gcttggcgta atcatggtca tagctgtttc ctgtgtgaaa ttgttatccg ctcacaattc 11761 cacacaacat acgagccgga agcataaagt gtaaagcctg gggtgcctaa tgagtgagct 11821 aactcacatt aattgcgttg cgctcactgc ccgctttcca gtcgggaaac ctgtcgtgcc 11881 agctgcatta atgaatcggc caacgcgcgg ggagaggcgg tttgcgtatt gggcgctctt 11941 ccgcttcctc gctcactgac tcgctgcgct cggtcgttcg gctgcggcga gcggtatcag 12001 ctcactcaaa ggcggtaata cggttatcca cagaatcagg ggataacgca ggaaagaaca 12061 tgtgagcaaa aggccagcaa aaggccagga accgtaaaaa ggccgcgttg ctggcgtttt 12121 tccataggct ccgcccccct gacgagcatc acaaaaatcg acgctcaagt cagaggtggc 12181 gaaacccgac aggactataa agataccagg cgtttccccc tggaagctcc ctcgtgcgct 12241 ctcctgttcc gaccctgccg cttaccggat acctgtccgc ctttctccct tcgggaagcg 12301 tggcgctttc tcatagctca cgctgtaggt atctcagttc ggtgtaggtc gttcgctcca 12361 agctgggctg tgtgcacgaa ccccccgttc agcccgaccg ctgcgcctta tccggtaact 12421 atcgtcttga gtccaacccg gtaagacacg acttatcgcc actggcagca gccactggta 12481 acaggattag cagagcgagg tatgtaggcg gtgctacaga gttcttgaag tggtggccta 12541 actacggcta cactagaaga acagtatttg gtatctgcgc tctgctgaag ccagttacct 12601 tcggaaaaag agttggtagc tcttgatccg gcaaacaaac caccgctggt agcggtggtt 12661 tttttgtttg caagcagcag attacgcgca gaaaaaaagg atctcaagaa gatcctttga 12721 tcttttctac ggggtctgac gctcagtgga acgaaaactc acgttaaggg attttggtca 12781 tgagattatc aaaaaggatc ttcacctaga tccttttaaa ttaaaaatga agttttaaat 12841 caatctaaag tatatatgag taaacttggt ctgacagtta ccaatgctta atcagtgagg 12901 cacctatctc agcgatctgt ctatttcgtt catccatagt tgcctgactc cccgtcgtgt 12961 agataactac gatacgggag ggcttaccat ctggccccag tgctgcaatg ataccgcgag 13021 acccacgctc accggctcca gatttatcag caataaacca gccagccgga agggccgagc 13081 gcagaagtgg tcctgcaact ttatccgcct ccatccagtc tattaattgt tgccgggaag 13141 ctagagtaag tagttcgcca gttaatagtt tgcgcaacgt tgttgccatt gctacaggca 13201 tcgtggtgtc acgctcgtcg tttggtatgg cttcattcag ctccggttcc caacgatcaa 13261 ggcgagttac atgatccccc atgttgtgca aaaaagcggt tagctccttc ggtcctccga 13321 tcgttgtcag aagtaagttg gccgcagtgt tatcactcat ggttatggca gcactgcata 13381 attctcttac tgtcatgcca tccgtaagat gcttttctgt gactggtgag tactcaacca 13441 agtcattctg agaatagtgt atgcggcgac cgagttgctc ttgcccggcg tcaatacggg 13501 ataataccgc gccacatagc agaactttaa aagtgctcat cattggaaaa cgttcttcgg 13561 ggcgaaaact ctcaaggatc ttaccgctgt tgagatccag ttcgatgtaa cccactcgtg 13621 cacccaactg atcttcagca tcttttactt tcaccagcgt ttctgggtga gcaaaaacag 13681 gaaggcaaaa tgccgcaaaa aagggaataa gggcgacacg gaaatgttga atactcatac 13741 tcttcctttt tcaatattat tgaagcattt atcagggtta ttgtctcatg agcggataca 13801 tatttgaatg tatttagaaa aataaacaaa taggggttcc gcgcacattt ccccgaaaag 13861 tgccacctga cgtcgacgga tcgggagatc tcccgatccc ctatggtgca ctctcagtac 13921 aatctgctct gatgccgcat agttaagcca gtatctgctc cctgcttgtg tgttggaggt 13981 cgctgagtag tgcgcgagca aaatttaagc tacaacaagg caaggcttga ccgacaattg 14041 catgaagaat ctgcttaggg ttaggcgttt tgcgctgctt cgcgatgtac gggccagata 14101 tacgcgttga cattgattat tgactagtta ttaatagtaa tcaattacgg ggtcattagt 14161 tcatagccca tatatggagt tccgcgttac ataacttacg gtaaatggcc cgcctggctg 14221 accgcccaac gacccccgcc cattgacgtc aataatgacg tatgttccca tagtaacgcc 14281 aatagggact ttccattgac gtcaatgggt ggagtattta cggtaaactg cccacttggc 14341 agtacatcaa gtgtatcata tgccaagtac gccccctatt gacgtcaatg acggtaaatg 14401 gcccgcctgg cattatgccc agtacatgac cttatgggac tttcctactt ggcagtacat 14461 ctacgtatta gtcatcgcta ttaccatgg //
载体图谱质粒图谱pdf版和相关资料下载
载体质粒应用举例
